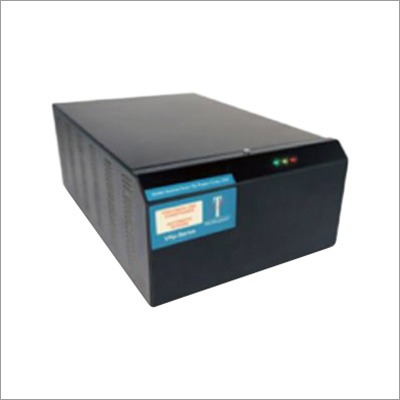

Single Phase Line Conditioner

Single Phase Line Conditioner
Single Phase Line Conditioner
Product Code : SPLC 05
Brand Name : TIRUPATI AGENCIES
Product Description

                                                Single Phase Line Conditioner

We are counted among he prominent trader and supplier in market, involved in offering Single Phase Line Conditioner to our customers. This product is best suitable for offering economical solutions at different offices, institutes, laboratories, houses,  and many more. Our Single Phase Line Conditioner is a device intended to increase the quality of the power that is supplied to electrical load equipment. In addition to this, our Single Phase Line Conditioner made under highly strict measured in order to maintain its compliance with the well-defined quality norms, are being provided to all our customers.

Features:

  •    Remote sensing facility
  •    High stability and close
  •    Over voltage protection
  •    Long service life

Other Details:

Precision fast, PWM AC mains voltage improvement. This precision automatic voltage regulator ensures trouble-free operation of electronic equipment over a range of wide mains ac voltage fluctuation found in numerous developing countries. No switching of caps is there, or other than a break in the path of power, thanks to uninterrupted pulse-width-modulation (PWM) switching of a buck boost transformer.

  •     Aesthetic design & compact size
  •     Low weight & quiet operation
  •     Solid state & maintenance free
  •     PWM Line Conditioner Capacity: 1 KVA - 200 KVA
  •     Instant correction & superior voltage regulation
  •     Built-in surge, spike & noise filter
  •     Compatible with any load as it does not switch any component in the path of power
  •     Energy-efficient substitution for energy guzzling CVT
  •     Its ultra low impedance ensures stability even with the most stringent loads



Technical Specifications:

Feature

VRp-3000-9230-200M

VRp-5000-9230-200M

VRp-7500-9230-200M

VRp-10000-9230-200M

Electrical

Capacity in KVA (KW)

3 KVA

5 KVA

7.5 KVA

10 KVA

Regulator Engine

High frequency 20 KHZ IGBT driven voltage regulation convertor

Input

Nominal Voltage

230 volts AC, Single Phase

Normal operating voltage

184-276 volts AC (+20%) for full regulation

Relaxed operating voltage

160-300 volts AC (+30%) with in maximum rated input current capacity

Maximum rated input current

16A

27A

40A

54A

Nominal Frequency

47-63 Hz

Input circuit breaker rating

20A x 2 Phase

32A x 2 Phase

40A x 2 Phase

63A x 2 Phase

Input wire size

4mm2 (AWG 12)

4mm2 (AWG 12)

6mm2 (AWG 10)

10mm2 (AWG 8)

AC connection

Terminal block

Output

Nominal voltage

230 Volts AC, Three Phase

Power efficiency

Typically over 96%

Voltage regulation

+/-1%

Maximum rated output current

13A

22A

32A

43A

System status indicator

Green LED (ON) indicates normal operation

Physical

Dimension (in mm)

300W x 165 H x 435D

400W x 280H x 540D

Weight (approx)

20 kgs

23 kgs

40 kgs

50 kgs

Annunciation

LED display for regulation mode, Bypass mode and fault conditions

Mounting

Pad Mounting

Environmental

Ambient Temperature

0o to +45o centigrade (32o to +113o farhenite). 10 to 90% RH non-condensing

Cooling Method

Natural Cooled

Protective Features

Standards and Safety

Designed to meet protection class IP 20

OV/UV cut off

Automatic trip in event of High/Low/Missing voltage, auto reset

Surge test conditions

Per class 2 surge
